RUNOS CLI 2.0¶

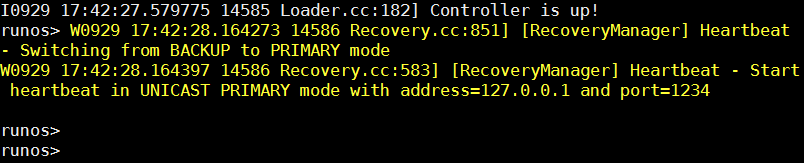

To enter to RUNOS command line interface, press the “Enter” key in your console after RUNOS running. And you should see `runos> ` in the command line.

RUNOS Core CLI¶

show info¶

Command	show info
Returns	Controller info: number of switches controller start time controller uptime OpenFlow message statistics: total number of received messages(rx packets) total number of received packet-in messages(packet-in packets) total number of transmitted messages(tx packets) rx, tx, packet-in frequency per second rx, tx, packet-in frequency per switch per second
Arguments	no
Example	runos> show info
Application	OFServer
File	src/core/OFServerCli.cc

connectioin list¶

Command	connection list
Returns	Returns list of connections and statistics: switch DPID connection status (UP/DOWN) IP address and port start time uptime number of rx, packet-in, tx, packets for each connections
Arguments	no
Example	runos> connection list
Application	OFServer
File	src/core/OFServerCli.cc

switch info¶

Command	switch info <dpid>
Returns	Returns detailed information about switch with <dpid> (manufacturer, hardware and software, number of flow tables, interfaces and its status and the others.
Arguments	<dpid> - switch DPID
Example	runos> switch info 1
Application	Switch Manager
File	src/core/SwitchManagerCli.cc

switch list¶

Command	switch list
Returns	Return list of connected switches (DPID, hardware and description)
Arguments	no
Example	runos> switch list
Application	Switch Manager
File	src/core/SwitchManagerCli.cc

link list¶

Command	link list
Returns	Returns number of links, its status, and pairs <DPID, port> for each link.
Arguments	no
Example	runos> link list
Application	Link Discovery
File	src/core/LinkDiscoveryCli.cc

RUNOS Applications CLI¶

l2-switch¶

Command	l2-switch
Returns	Returns list of pairs <MAC, port>
Arguments	no
Example	runos> l2-switch
Application	L2 Learning Switch
File	src/core/L2-LearningSwitchCli.cc
